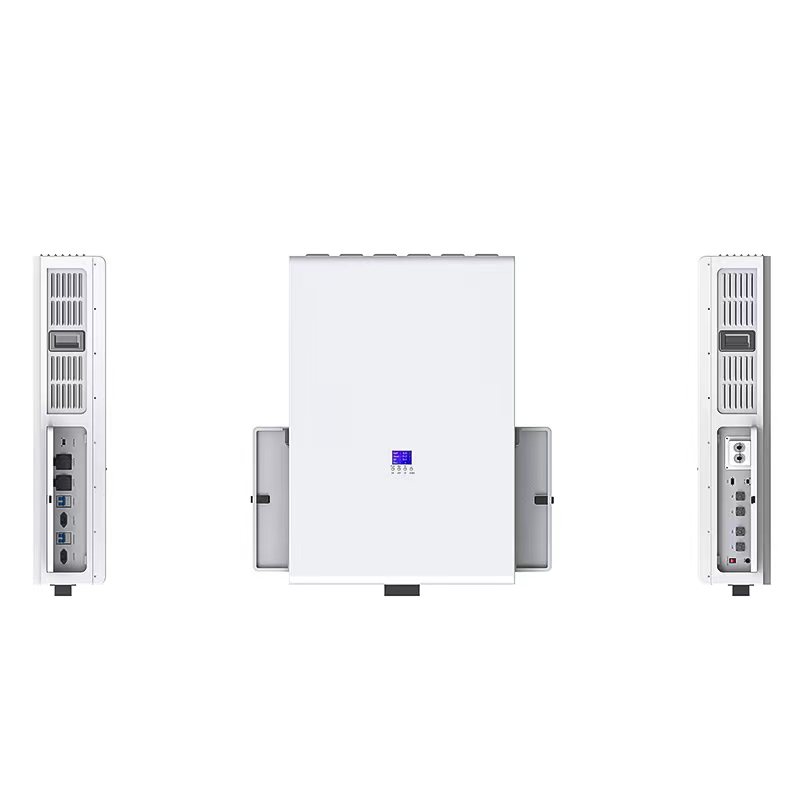

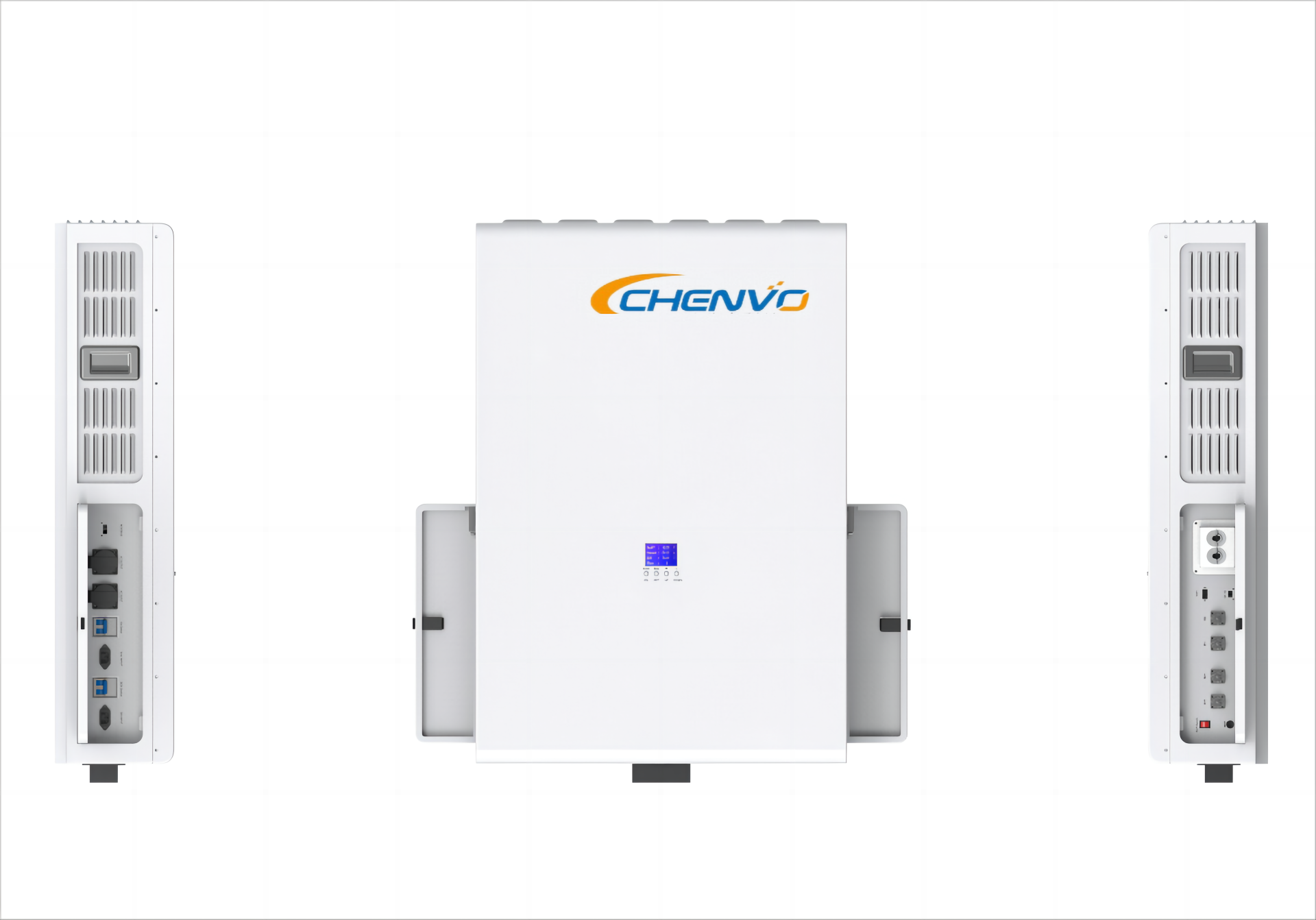

Wall-mounted home energy storage(accept OEM)
*Warranty--A grade cell LiFePO4 cell. automotive-grade BMS control and protection system and electronic components.(Up to 10 years) *Exceptional lifespan--more than 7000 charge and discharge cycles, DOD@80% Inverter parameters Rated power 5KW Peak power 9KW Output waveform Pure sine wave Input/Output ACvoltage 110Vac/220Vac Input/Output AC voltage frequency 50Hz/60Hz Type ofinverter High frequency Battery parameters Nominal voltage 51.2V Nominal capacity 100Ah Electric quantity 5KWh Cell type LFP Cycle life ≥3000 (80%DOD) Charge temperature range 0~65℃ Discharge temperature range -20~65℃ Maximum continuous charge current 50A Maximum continuous discharge current 80A Colour White Dimensions 1070×735×237MM Weight 85Kg Installation method Wall mounted...
Category:
Share
Describe
*Warranty--A grade cell LiFePO4 cell. automotive-grade BMS control and protection system and electronic components.(Up to 10 years)
*Exceptional lifespan--more than 7000 charge and discharge cycles, DOD@80%
| Inverter parameters | |
| Rated power | 5KW |
| Peak power | 9KW |
| Output waveform | Pure sine wave |
| Input/Output ACvoltage | 110Vac/220Vac |
| Input/Output AC voltage frequency | 50Hz/60Hz |
| Type ofinverter | High frequency |
| Battery parameters | |
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah |
| Electric quantity | 5KWh |
| Cell type | LFP |
| Cycle life | ≥3000 (80%DOD) |
| Charge temperature range | 0~65℃ |
| Discharge temperature range | -20~65℃ |
| Maximum continuous charge current | 50A |
| Maximum continuous discharge current | 80A |
| Colour | White |
| Dimensions | 1070×735×237MM |
| Weight | 85Kg |
| Installation method | Wall mounted |
