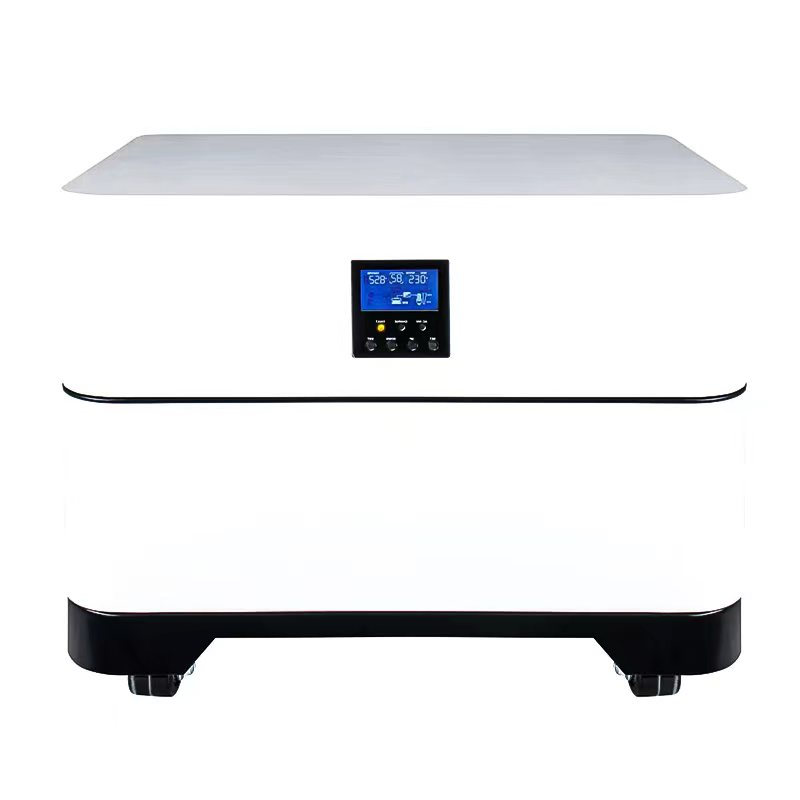

Stacked energy storage (accept OEM)
*LFP(lithium iron phosphate) cell to ensure the highest safety *Built-In BMS protects emperature,current, voltage,SoCSoH *Possibility of parallel connection with up to 16 pieces SPECIFICATION Unit Module Capacity 5.12KWH Module Quantity 1set 2set 3set 4set 5set Capacity 5.12KWH 10.24KWH 15.36KWH 20.48KWH 25.6KWH Standard Voltage 51.2V Operating Voltage 43.2V-57.6V Standard Discharge Current 100A 200A 300A 400A 500A Standard Charging Current 50A 100A 150A 200A 250A Recommend Discharge Depth 80% Humidity 20%-60% Installation Method Stacked IP Level IP20 Communication CAN/RS485/RS232(available WiFi/Bluetooth/4G) Size 620*550*480mm 620*550*760mm 620*550*1040mm 620*550*1320mm 620*550*1600mm Net Weight 50kg 80kg 120kg 150kg 190kg...
Category:
Share
Describe
*LFP(lithium iron phosphate) cell to ensure the highest safety
*Built-In BMS protects emperature,current, voltage,SoCSoH
*Possibility of parallel connection with up to 16 pieces
| SPECIFICATION | |||||
| Unit Module Capacity | 5.12KWH | ||||

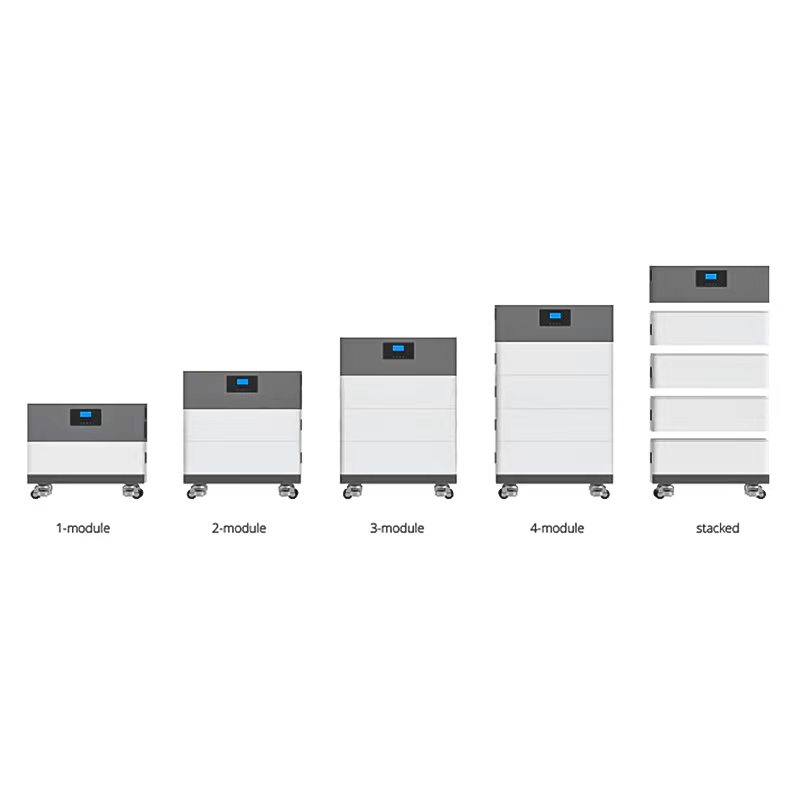

| Module Quantity | 1set | 2set | 3set | 4set | 5set |
| Capacity | 5.12KWH | 10.24KWH | 15.36KWH | 20.48KWH | 25.6KWH |
| Standard Voltage | 51.2V | ||||
| Operating Voltage | 43.2V-57.6V | ||||
| Standard Discharge Current | 100A | 200A | 300A | 400A | 500A |
| Standard Charging Current | 50A | 100A | 150A | 200A | 250A |
| Recommend Discharge Depth | 80% | ||||
| Humidity | 20%-60% | ||||
| Installation Method | Stacked | ||||
| IP Level | IP20 | ||||
| Communication | CAN/RS485/RS232(available WiFi/Bluetooth/4G) | ||||
| Size | 620*550*480mm | 620*550*760mm | 620*550*1040mm | 620*550*1320mm | 620*550*1600mm |
| Net Weight | 50kg | 80kg | 120kg | 150kg | 190kg |
